Tilt Bucket

Tilt Bucket

Tilt Bucket

Tilt Bucket
Engineered for maximum adaptability, this tilting bucket allows for lateral movement, significantly boosting efficiency in complex environments. It is the ideal solution for slope leveling, drainage work, and narrow ditching, providing the precise angles needed for professional-grade landscaping and infrastructure projects.
Selection of Machine2 - 6 ton
Width
1,000 - 1,500 mm
Tilt Angle
45° (left/right)

Engineered for maximum adaptability, this tilting bucket allows for lateral movement, significantly boosting efficiency in complex environments. It is the ideal solution for slope leveling, drainage work, and narrow ditching, providing the precise angles needed for professional-grade landscaping and infrastructure projects.

Selection of Machine
2 - 6 ton
Width
1,000  - 1,500mm
Tilt Angle
45° (left/right)
mobile background

Find the Best Products for Your Job Site

Specifications

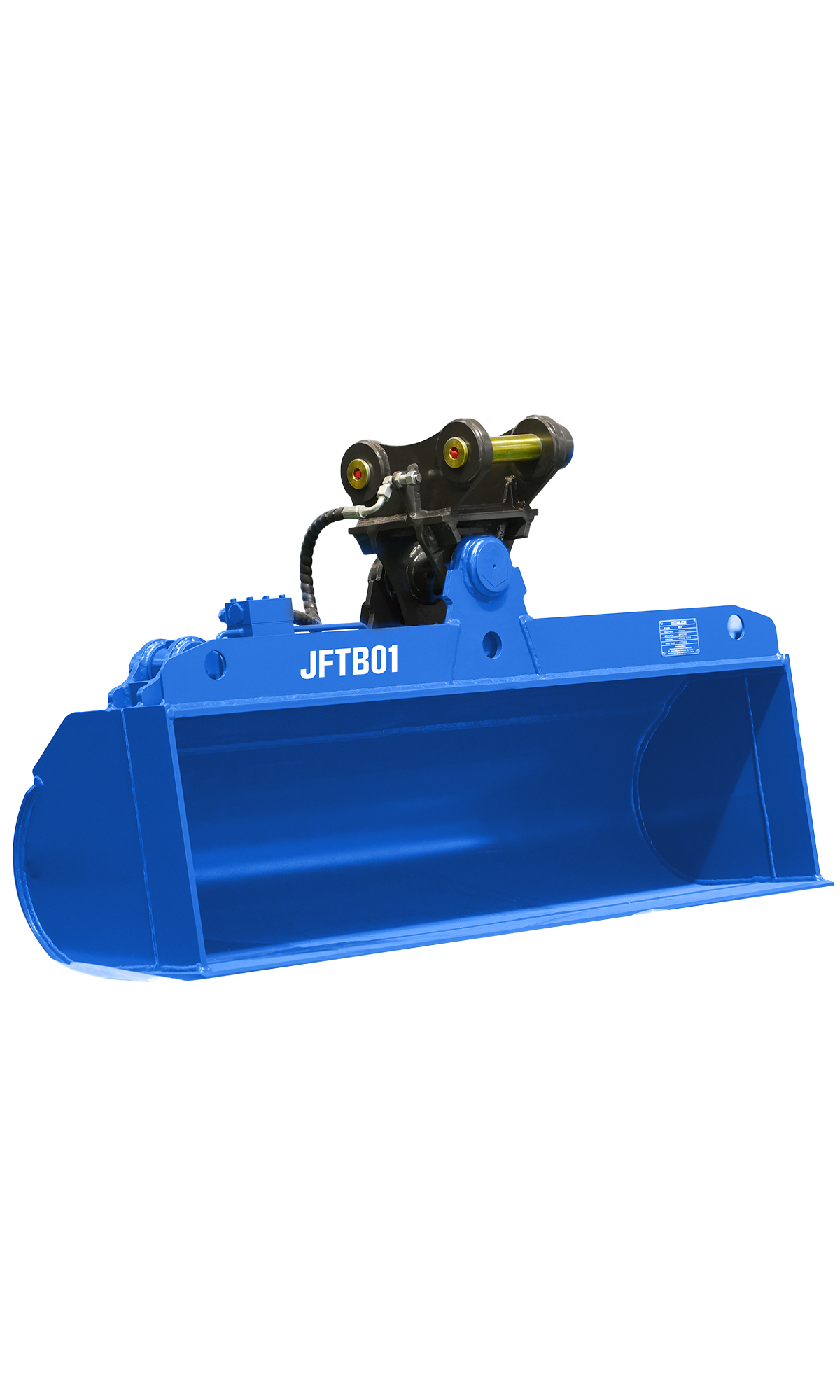

SpecificationJFTB01JFTB02
Widthmm10001500
Weightkg135220
Capacity0.110.255
Maximum Operating Pressurekg/cm²230230
Grapple Operating FlowL/min13-1815-20
Suitable Excavatorton2-45-6

Specifications and features are subject to change without notification to better improvenet in quality.
