Hydraulic Crusher (CR)

Hydraulic Crusher - CR Type

Hydraulic Crusher

Hydraulic Crusher - CR Type
Engineered for the initial stages of concrete building demolition, this equipment maximizes efficiency with its wide jaw opening and multi-point crushing teeth. The specialized tooth structure ensures rapid concrete fragmentation, significantly boosting productivity on the toughest job sites.
Selection of Machine11 - 35 ton
Max Opening Width
620 - 1,081 mm
Crushing Force
380 - 1,081 kN

Engineered for the initial stages of concrete building demolition, this equipment maximizes efficiency with its wide jaw opening and multi-point crushing teeth. The specialized tooth structure ensures rapid concrete fragmentation, significantly boosting productivity on the toughest job sites.

Selection of Machine11 - 35 ton
Max Opening Width
620 - 1,081 mm
Crushing Force
380 - 1,081 kN
mobile background

Find the Best Products for Your Job Site

Specifications

SpecificationJFC10D CRJFC15D CRJFC20D CR
Max Opening Widthmm6209501081
Weightkg66019602700
Crushing ForcekN3807901078
Shear ForcekN146030504154
Working Pressure (Cylinder)kg/cm²200-300300-350300-350
Oil Flow (Cylinder)L/min60-120140-240180-240
Working Pressure (Motor)kg/cm²60-90120-160120-160
Oil Flow (Motor)L/min20-3030-5030-50
Suitable Carrierton11-1617-2526-35
Rotation Mode-Mechanical or Hydraulic Type 360° Free Rotation

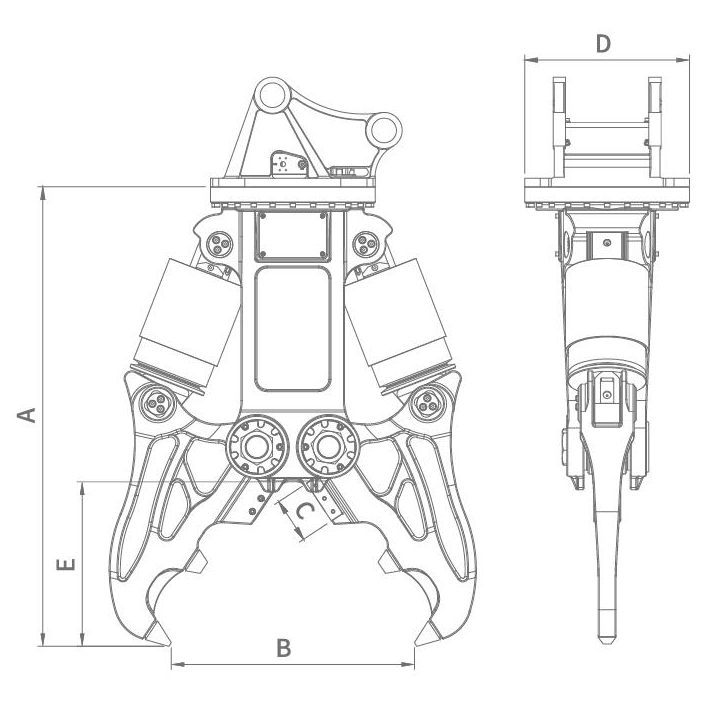

DimensionsJFC10D CRJFC15D CRJFC20D CR
A (Total Length)mm123718142043
B (Max Opening Width)mm6209501081
C (Cutter Length)mm125185200
D (Overall Width)mm486662732
E (Jaw Depth)mm419643724

Specifications and features are subject to change without notification to better improvenet in quality.
