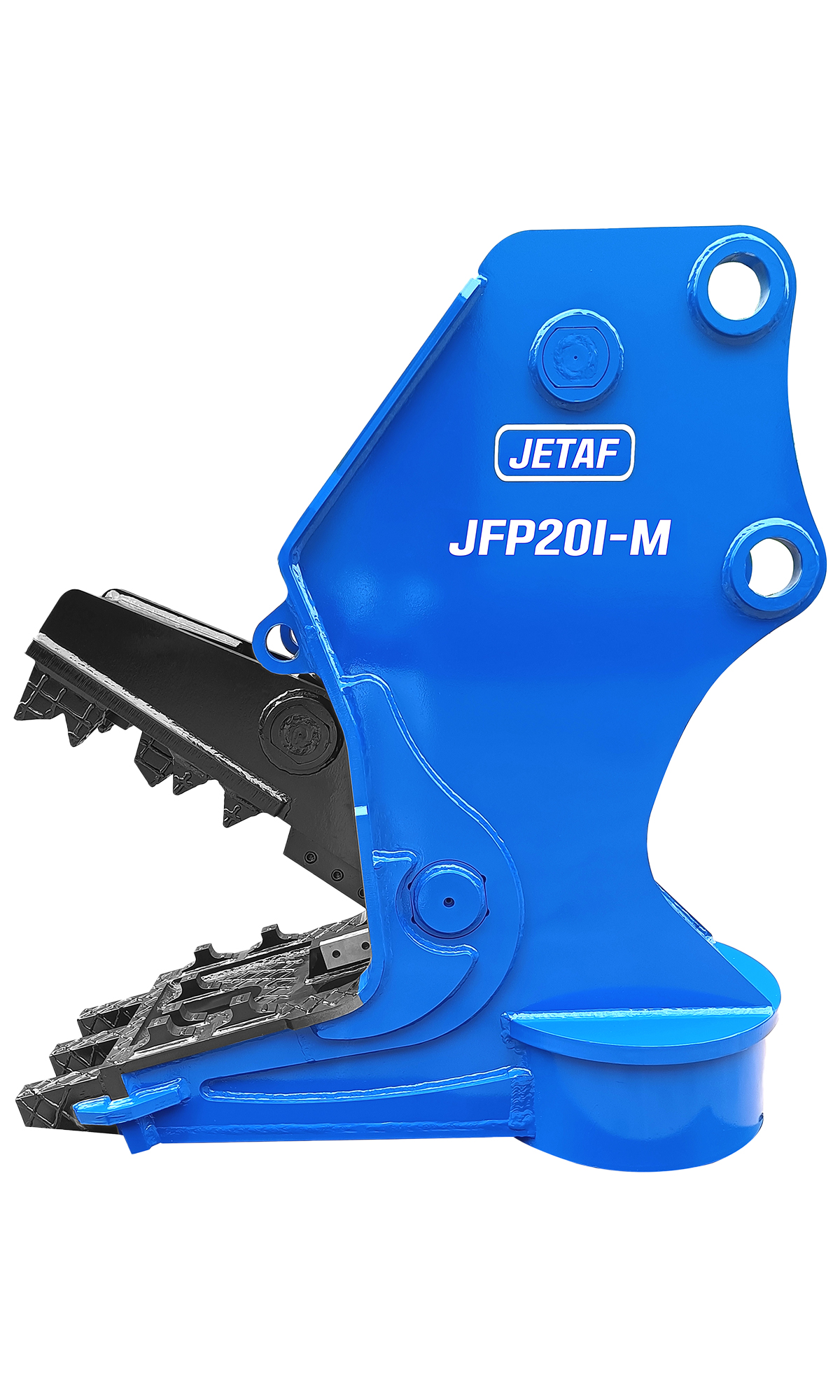

Magnet Pulverizer

Magnet Type Hydraulic Pulverizer

Magnet Pulverizer

Hydraulic Pulverizer - Magnet Type
Engineered for maximum site efficiency, this hybrid equipment combines powerful crushing, cutting, and gripping functions with a high-performance integrated magnet. It allows for the immediate sorting and collection of rebar right after concrete fragmentation, enabling operators to perform demolition and material organization simultaneously.
Selection of Machine18 - 27 ton
Max Opening Width
760 mm
Power Consumption
5 kW

Engineered for maximum site efficiency, this hybrid equipment combines powerful crushing, cutting, and gripping functions with a high-performance integrated magnet. It allows for the immediate sorting and collection of rebar right after concrete fragmentation, enabling operators to perform demolition and material organization simultaneously.

Selection of Machine18 - 27 ton
Max Opening Width
760 mm
Power Consumption
5 kN
mobile background

Find the Best Products for Your Job Site

Specifications

SpecificationJFP20I-M
Max Opening Widthmm760
Total Weightkg1850
Shear Force (Average)kN2320
Crush Force (End)kN410
Suitable Carrierton18-27
CurrentA15
Power ConsumptionkW5
Working Pressurekg/cm²300-350
Oil Flow RangeL/min
180-240
Rotation Type-Fixed Type
DimensionsJFP20I-M
A (Total Length)mm1780
B (Max Opening Width)mm760
C (Cutter Length)mm200
D (Overall Width)mm700
E (Jaw Depth)mm850

I : Inverted Cylinder. C : Change Jaw.

Specifications and features are subject to change without notification to better improvenet in quality.
