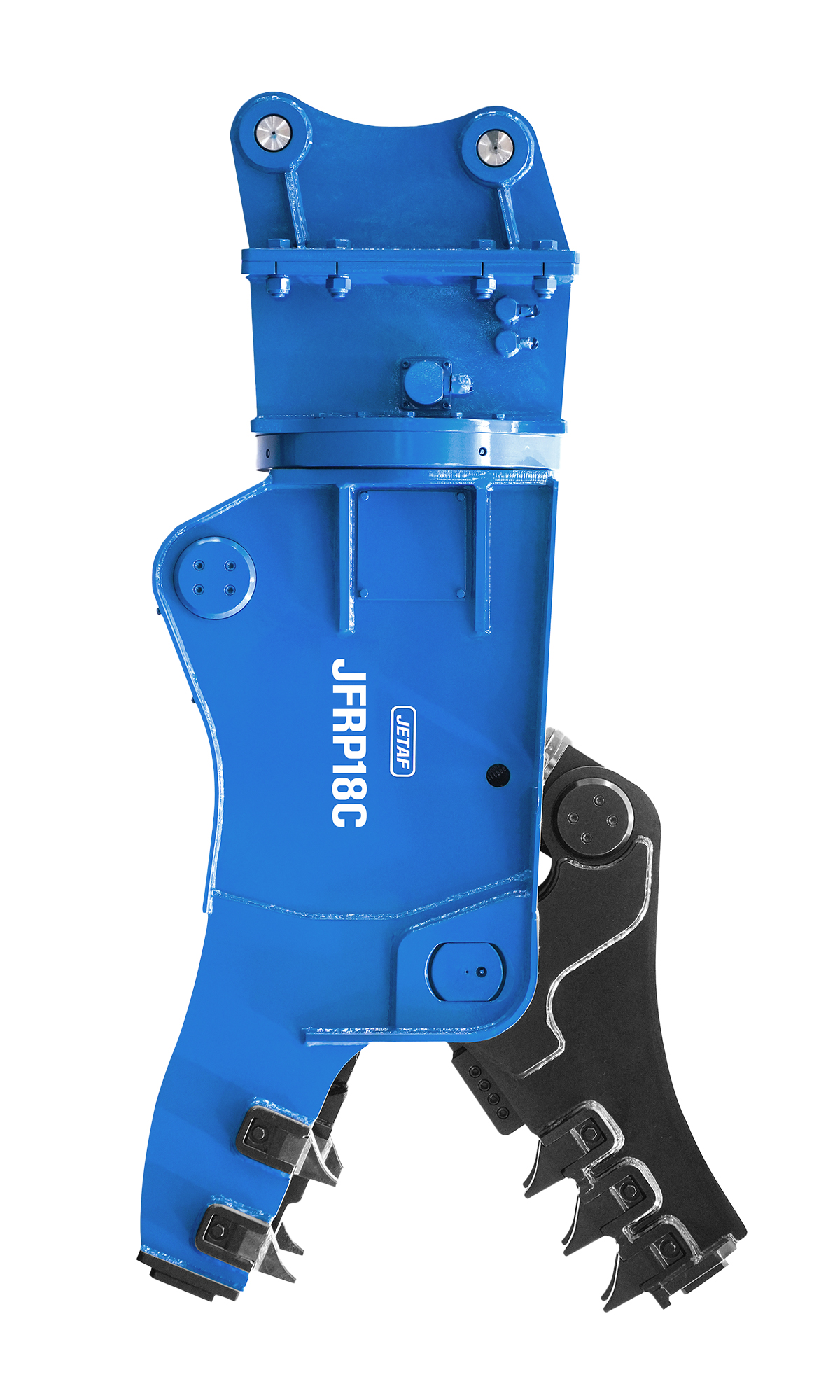

Rotating Pulverizer

Hydraulic Pulverizer - Rotary Type

Rotating Pulverizer

Hydraulic Pulverizer - Rotary Type
Engineered for maximum efficiency, this all-in-one tool handles both primary demolition of buildings and secondary crushing (rebar separation). Featuring a 360º continuous rotation, it provides ultimate operational flexibility, allowing operators to tackle complex structures from any angle.
Selection of Machine15 - 30 ton
Max Opening Width
660 - 850 mm
Crushing Force (END)
520 - 800 kN

Engineered for maximum efficiency, this all-in-one tool handles both primary demolition of buildings and secondary crushing (rebar separation). Featuring a 360º continuous rotation, it provides ultimate operational flexibility, allowing operators to tackle complex structures from any angle.

Selection of Machine15 - 30 ton
Max Opening Width
660 - 850 mm
Crushing Force (END)
520 - 800 kN
mobile background

Find the Best Products for Your Job Site

Specifications

SpecificationJFRP18CJFRP20JFRP20C
Max Opening Widthmm660850800
Weightkg180024002500
Shear Force (average)kN146027002700
Crushing Force (end)kN520800800
Working Pressure (Cylinder)kg/cm²300-350300-350300-350
Oil Flow (Cylinder)L/min140-240180-240180-240
Working Pressure (Motor)kg/cm²120-160120-160120-160
Oil Flow (Motor)L/min30-5030-5030-50
Suitable Carrierton15-2020-3020-30

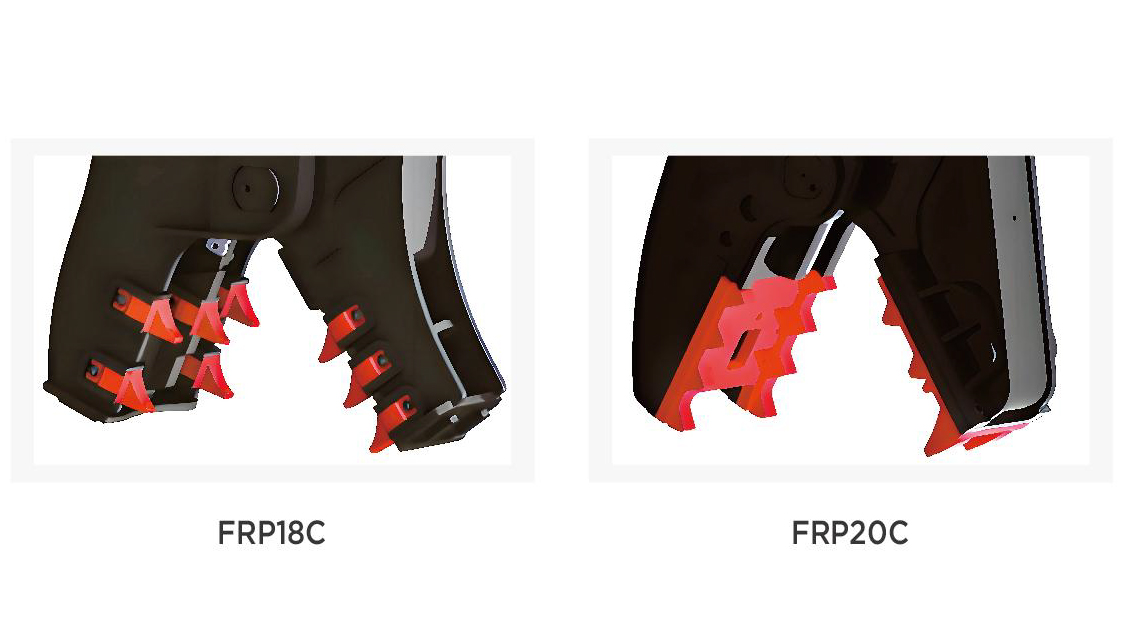

Teeth-Single ToothFixed and cannot be replacedWhole Jaw Plate Replaceable
Rotation Mode-Hydraulic Rotation, 360° Free Rotation

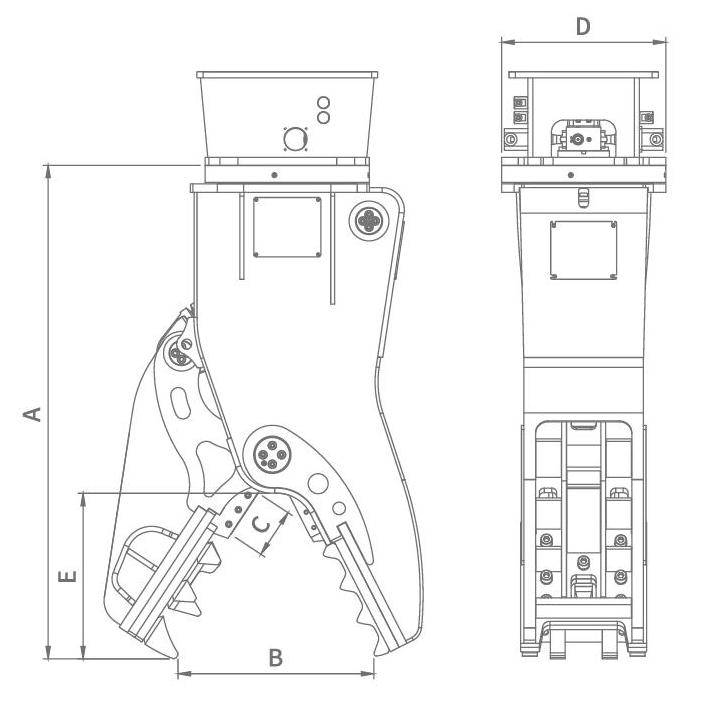

DimensionsJFRP18CJFRP20JFRP20C
A (Total Length)mm185019801980
B (Max Opening Width)mm660850800
C (Cutter Length)mm140200200
D (Overall Width)mm662662662
E (Jaw Depth)mm585645670

C : Change Jaw.

Specifications and features are subject to change without notification to better improvenet in quality.
