Vehicle Dismantler

Car Dismantling Shear

Vehicle Dismantler

Car Dismantling Shear
Engineered for precise dismantling in scrap yards and steel structure sites. Featuring a serrated front-tooth design, this shear excels at firmly gripping and tearing through materials. Its heavy-duty construction is also highly effective for large-scale hydraulic ship-breaking and recycling projects.
Selection of Machine13 - 30 ton
Max Opening Width
660 - 750 mm
Crushing Force
120 - 390 kN

Engineered for precise dismantling in scrap yards and steel structure sites. Featuring a serrated front-tooth design, this shear excels at firmly gripping and tearing through materials. Its heavy-duty construction is also highly effective for large-scale hydraulic ship-breaking and recycling projects.

Selection of Machine13 - 30 ton
Max Opening Width
660 - 750 mm
Crushing Force
120 - 390 kN
mobile background

Find the Best Products for Your Job Site

Specifications

SpecificationJFCP18LJFCP20
Max Opening Widthmm750660
Weightkg9302250
Crushing ForcekN480945
Shear ForcekN120390
Working Pressure (Cylinder)kg/cm²240-300300-350
Working Pressure (Motor)kg/cm²120-160120-160
Oil Flow (Cylinder)L/min180-200180-240
Oil Flow (Motor)L/min30-5030-50
Suitable Carrierton13-2520-30
Rotation Mode-Hydraulic Type 360° Free Rotation

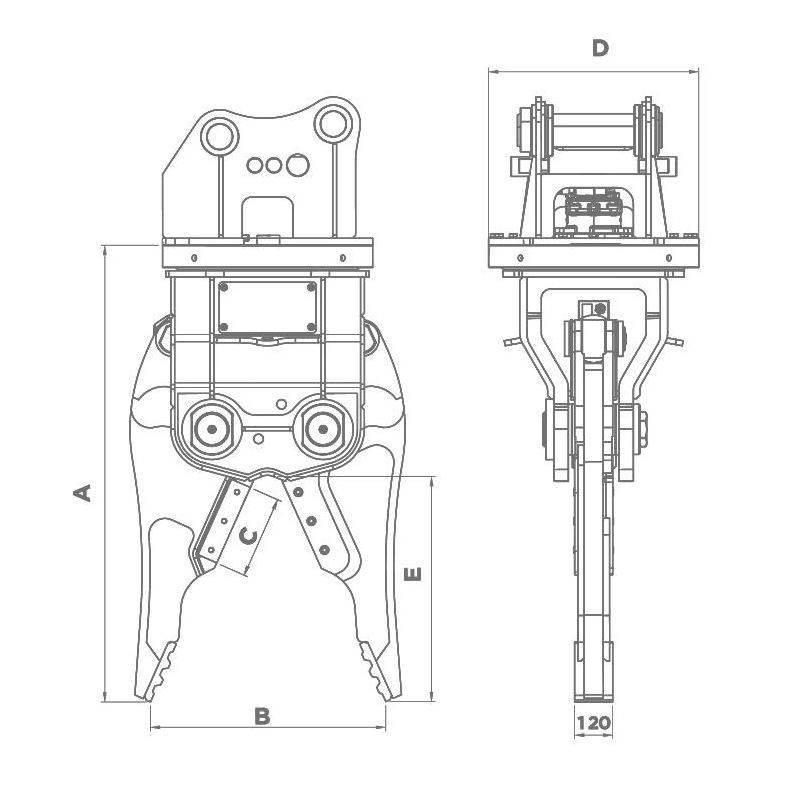

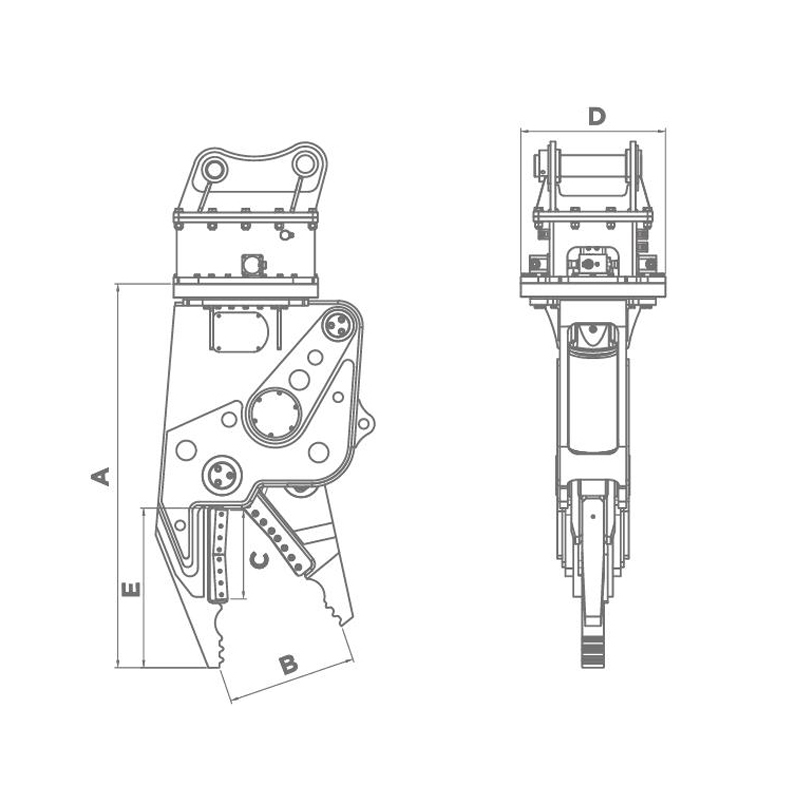

DimensionsJFCP18LJFCP20
A (Total Length)mm14401950
B (Max Opening Width)mm750660
C (Cutter Length)mm260450
D (Overall Width)mm665732
E (Jaw Depth)mm710805

L : Large Model.

Specifications and features are subject to change without notification to better improvenet in quality.
